Deep Forest Cherry

Deep Forest Cherry

Deep Forest Cherry

Deep Forest Cherry

Overview

Launched at the Winter NAMM Show in 2001 (along with its Walnut sibling) these were arguably the top of the range Mapex kits, even above the Orion Series. Certainly they were more expensive, and they are definitely rarer to find these days.

With the exception of the snare drum(s), which contnued as part of the standard range until 2008, it's remarkably difficult to find specific details of these kits. Despite a photo being shown on the back of the range specific 2002 catalogues, they don't actually appear in any catalogue. Well, not one I've ever been able to track down. If you happen to have one, please do get on touch!

Digging around on the Mapex Drums website for 2002 using the WayBack Machine I've managed to grab some basic information on the components to include in the spec list. There are genuinely way more than I thought! The CWB2218SEWN Bass drum option has an asterix next to it on the site, but there's no information as to what that means. I'm assuming a "Special Edition" of some type?

On a side note, the Mapex site's history section has a tiny copy of an advert showing the options, but irritatingly it's almost impossible to read. It's also in the wrong section of the timeline: it says 2004, but they were definitely released and on their site in late 2001 .

As a summary, I'm going to quote a short online article from Pro-Music-News from 2001.

"At winter NAMM 2001 Mapex launched the Deep Forest project combining the heart of the cratftsman who can see the beauty of his creation in the natural wood before the first cut with the soul of the drummer who can hear the perfect tone of his instrument before he begins to perform. The limited edition drum kits of the Deep Forest series are handcrafted from select walnut and cherry logs and are designed to meet the demands of professional performing drummers as well as the recording engineers' needs.

Each shell is rotary cut from a single log and matched for its color and tone before put into full drum sets. The shells of toms and snares are 5.1 mm strong and the bass drums feature 7.2 mm shells. The Deep Forest instruments are hand rubbed with a wax finish.

Sets come with a 14x5.5" snare drum, a 22x18" bass drum, 10x8", 12x9",14x11" and 16x13" rack toms including hardware. Additional components are available. The new Mapex Deep Forest drums will also be showing at the Mapex stand in Hall 8 at Musikmesse Frankfurt"

Whilst the above says the set comes with the 14"x5.5" snare it was more generally advertised with the 14"x6.5" snare.

Although the Deep Forest kits aren't technically Black Panthers, the Deep Forest range of snares were always included in Black Panther catalogues, so I'm including them.

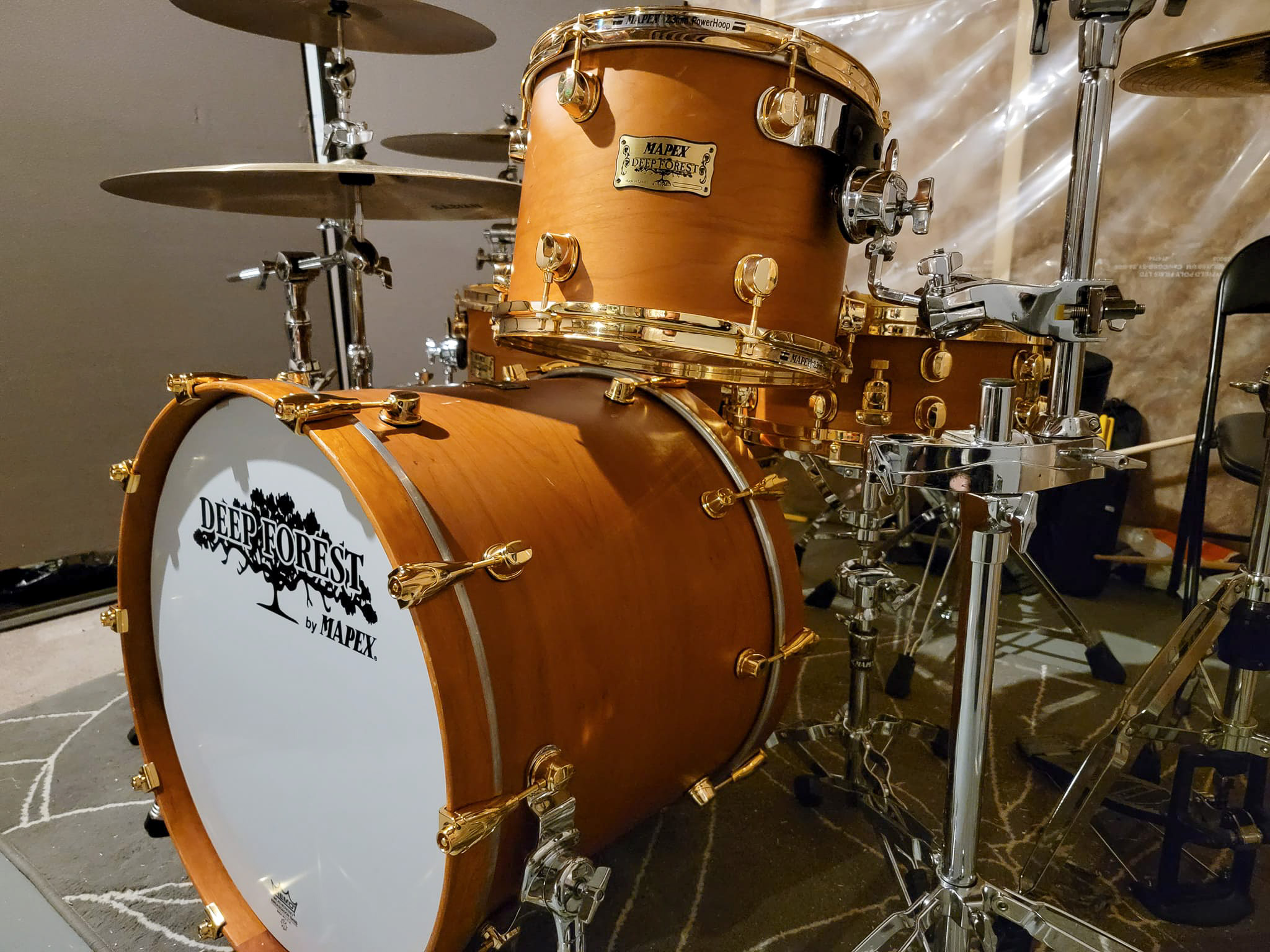

Main photo courtesy of Paul Dasilva - thanks Paul.

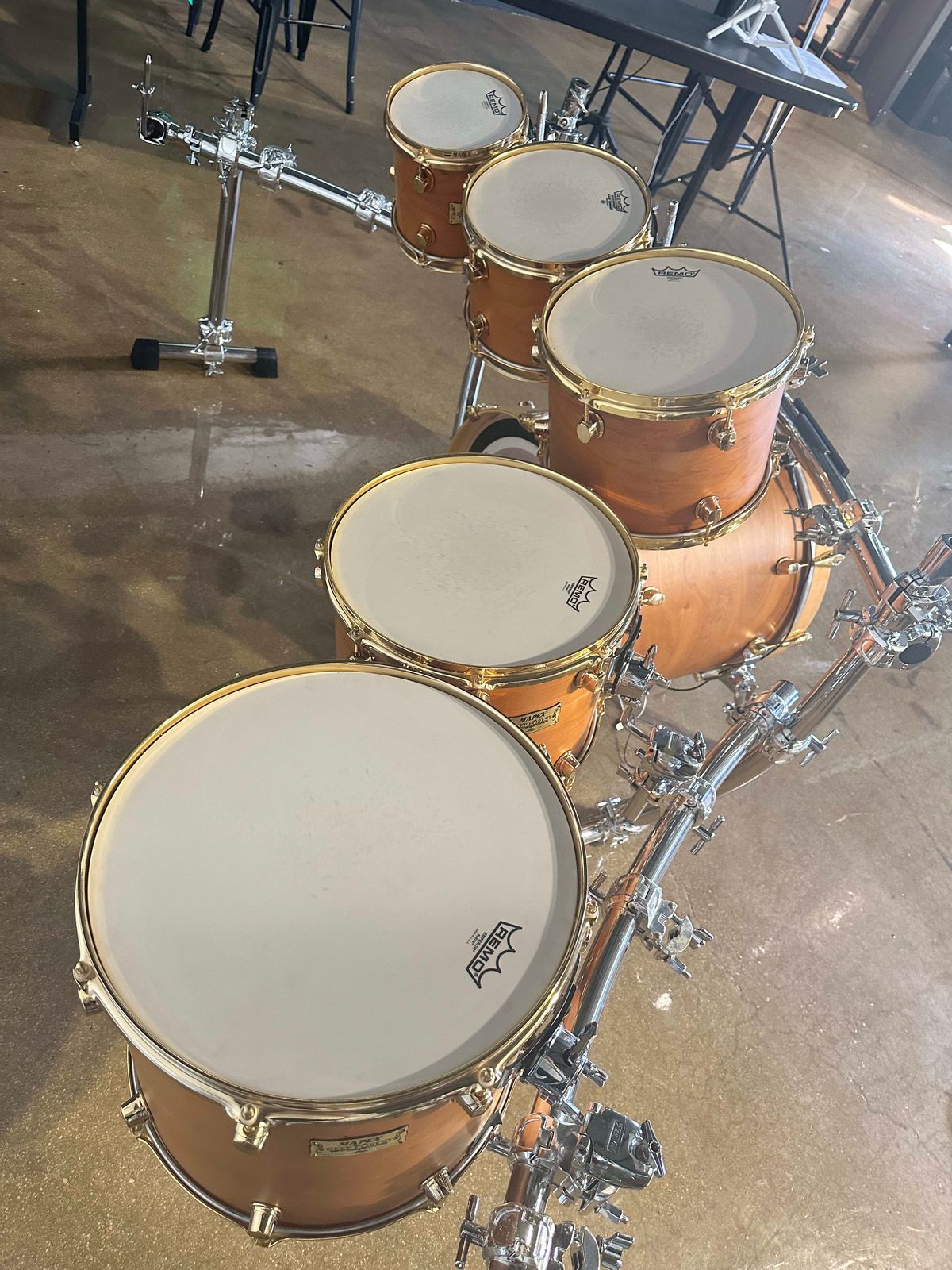

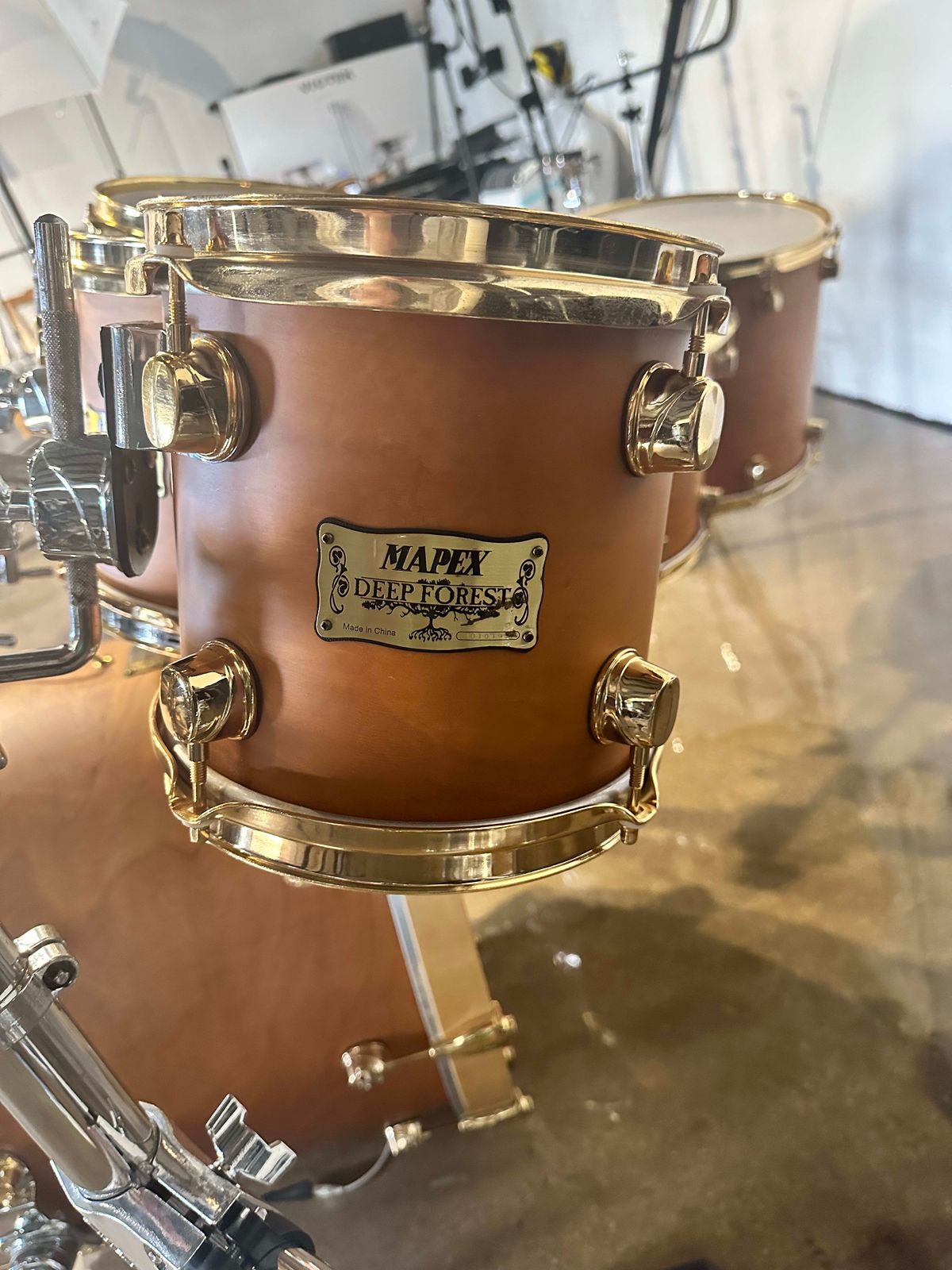

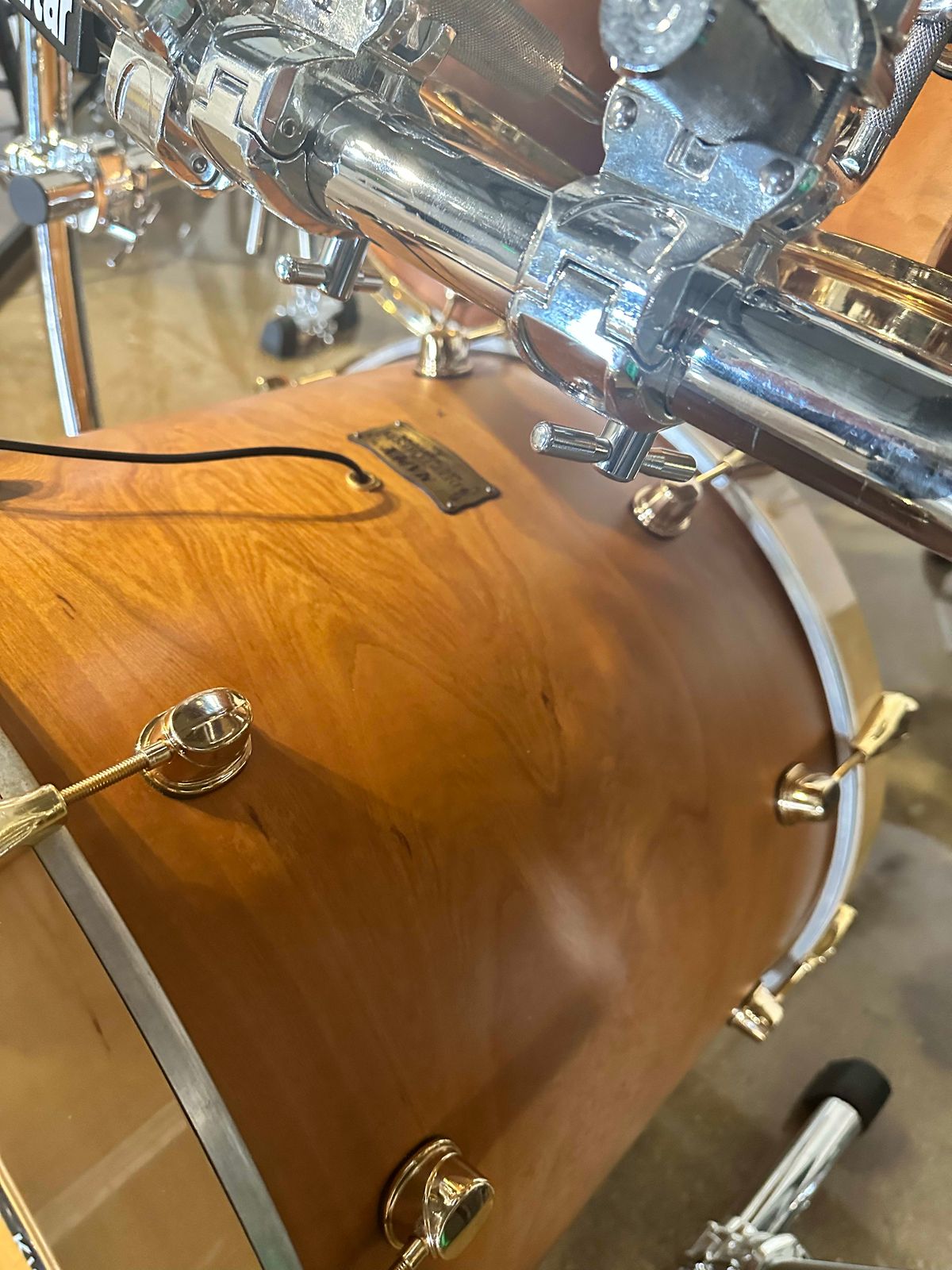

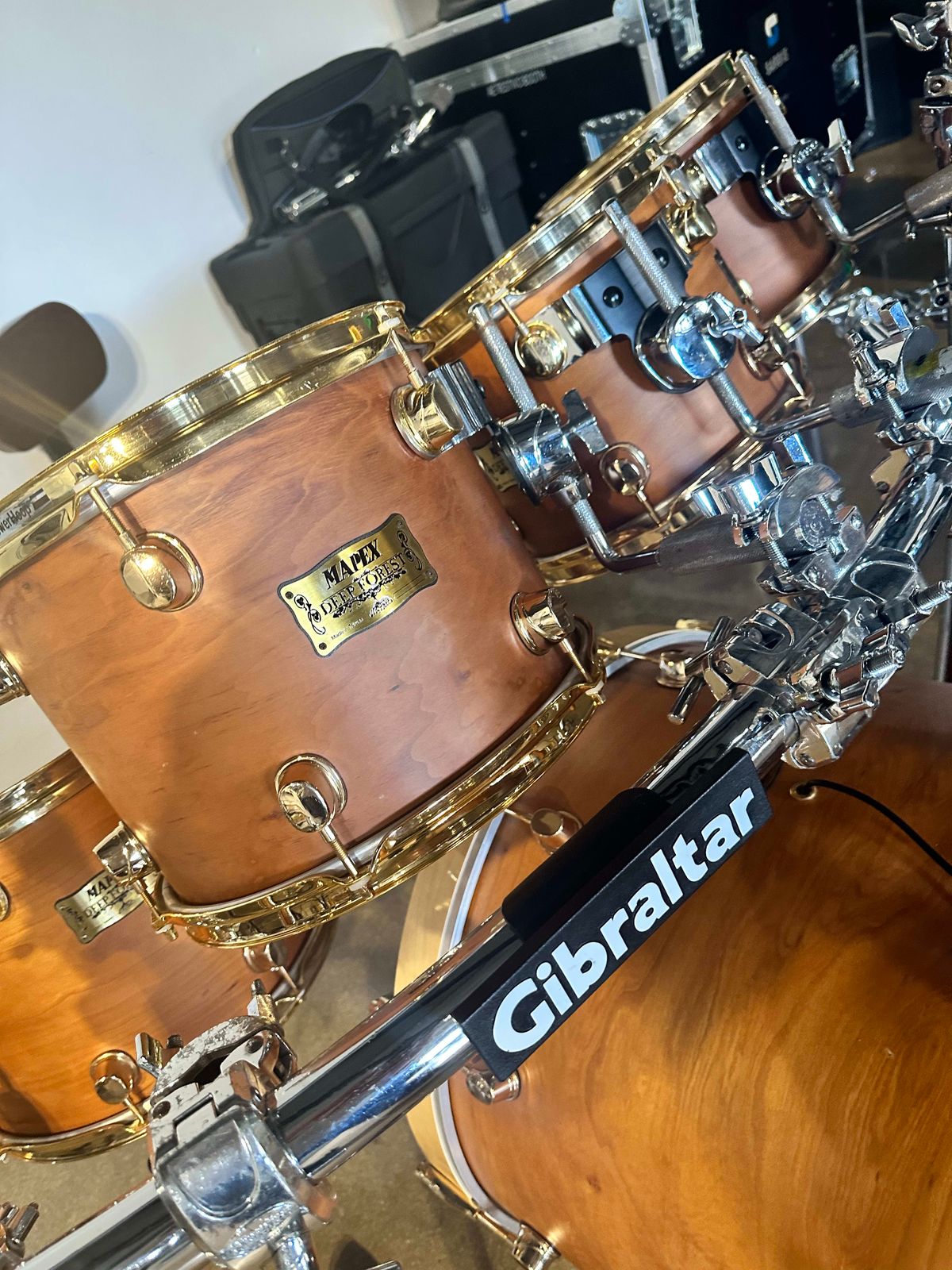

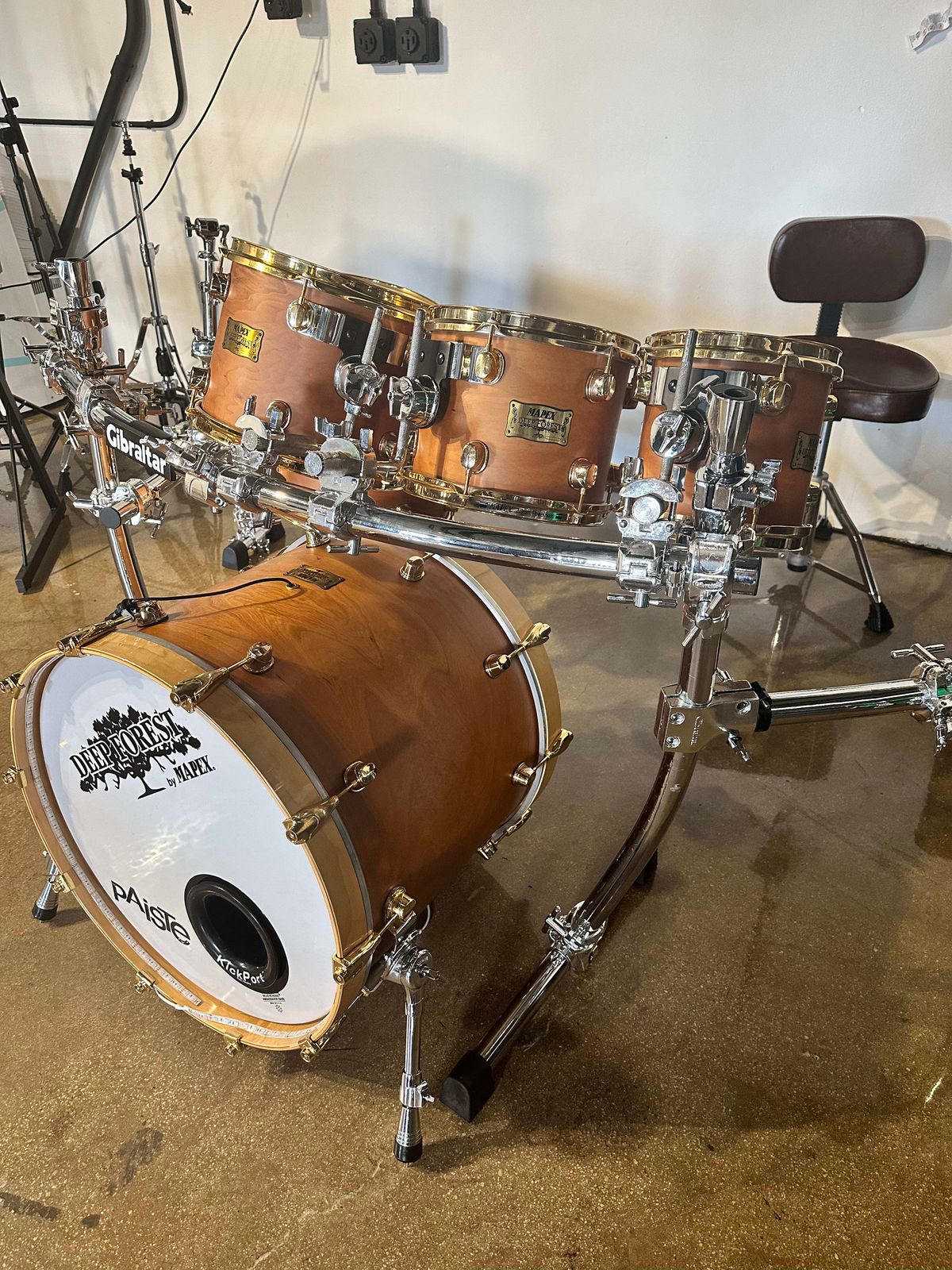

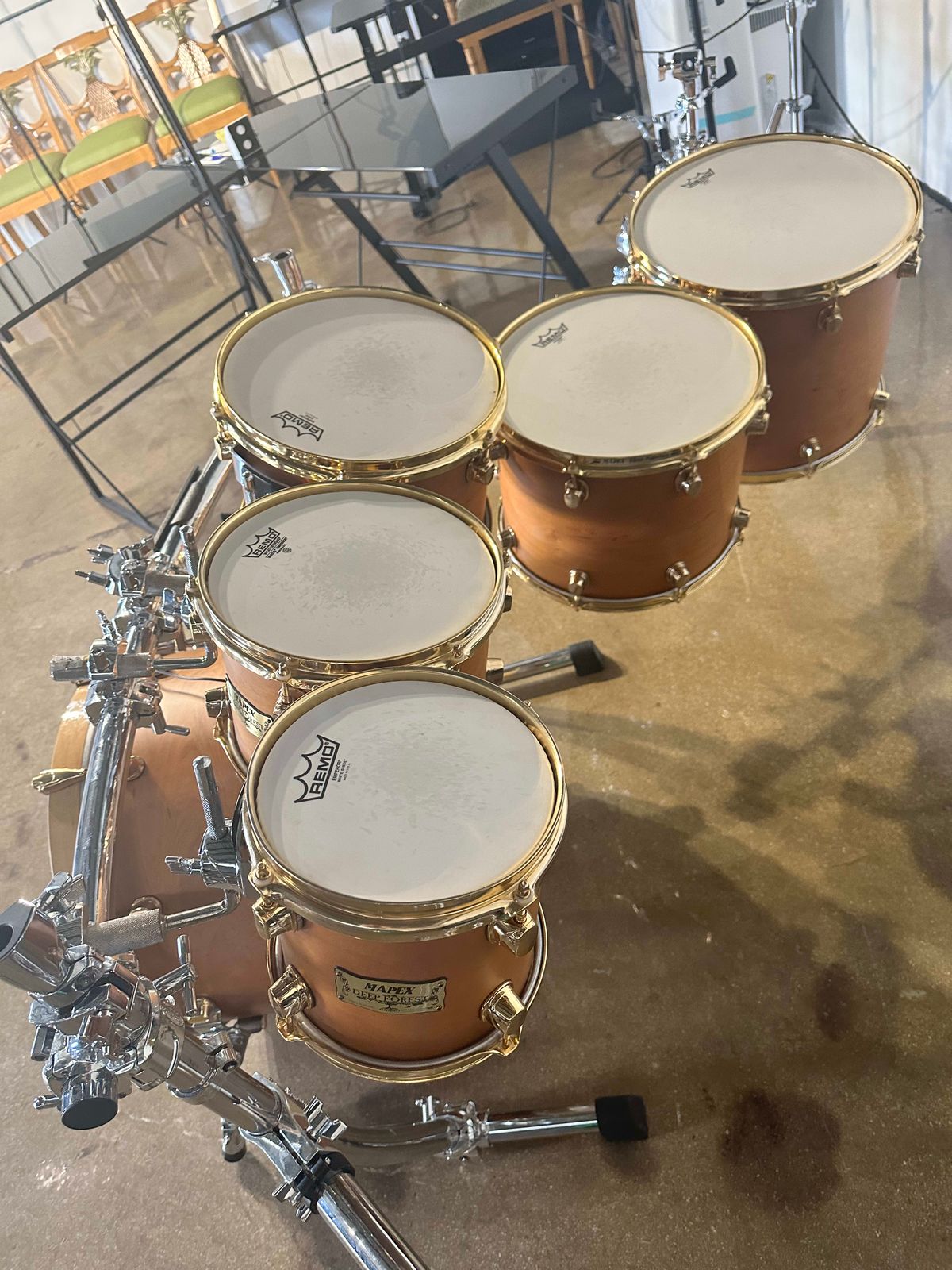

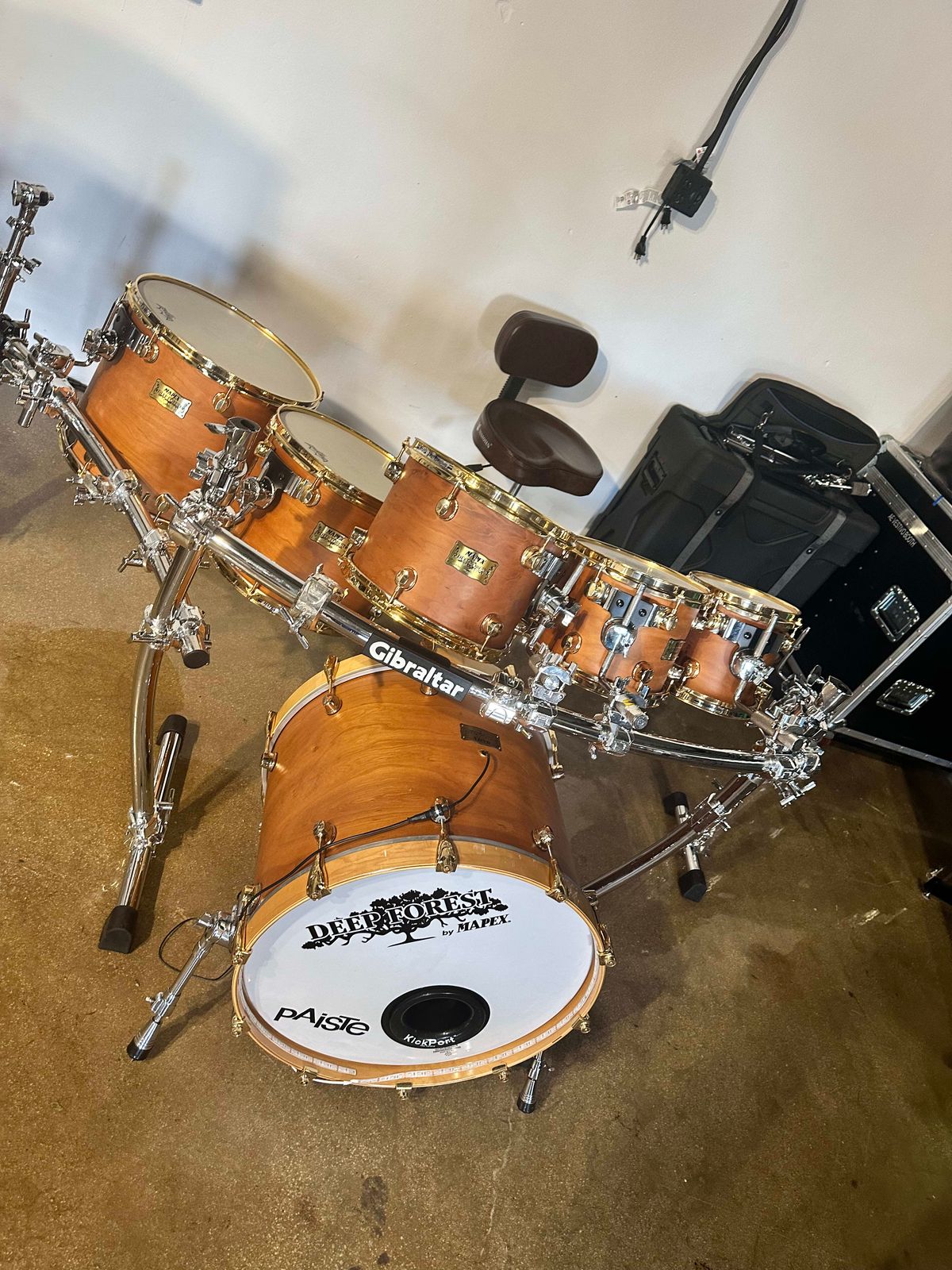

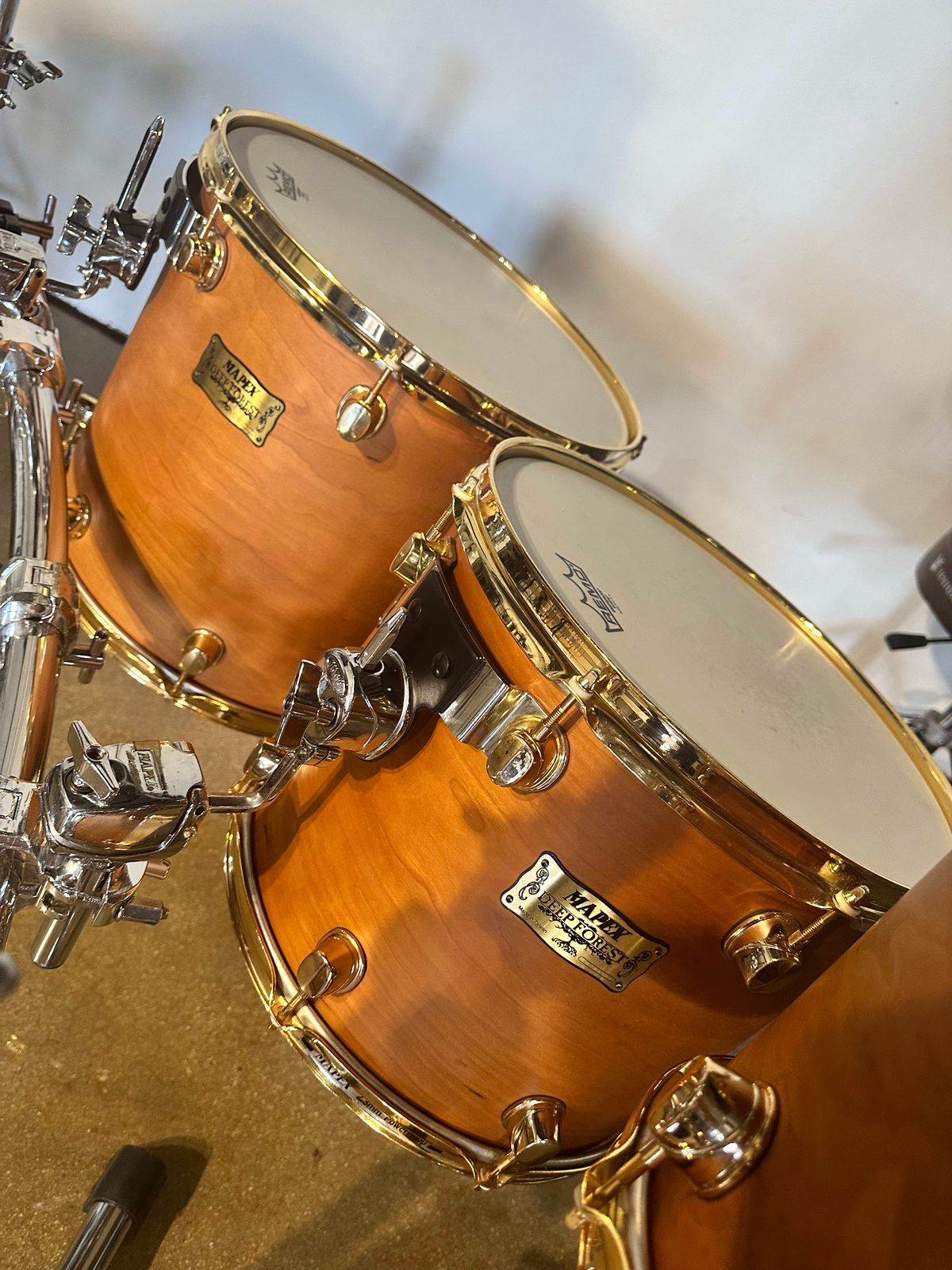

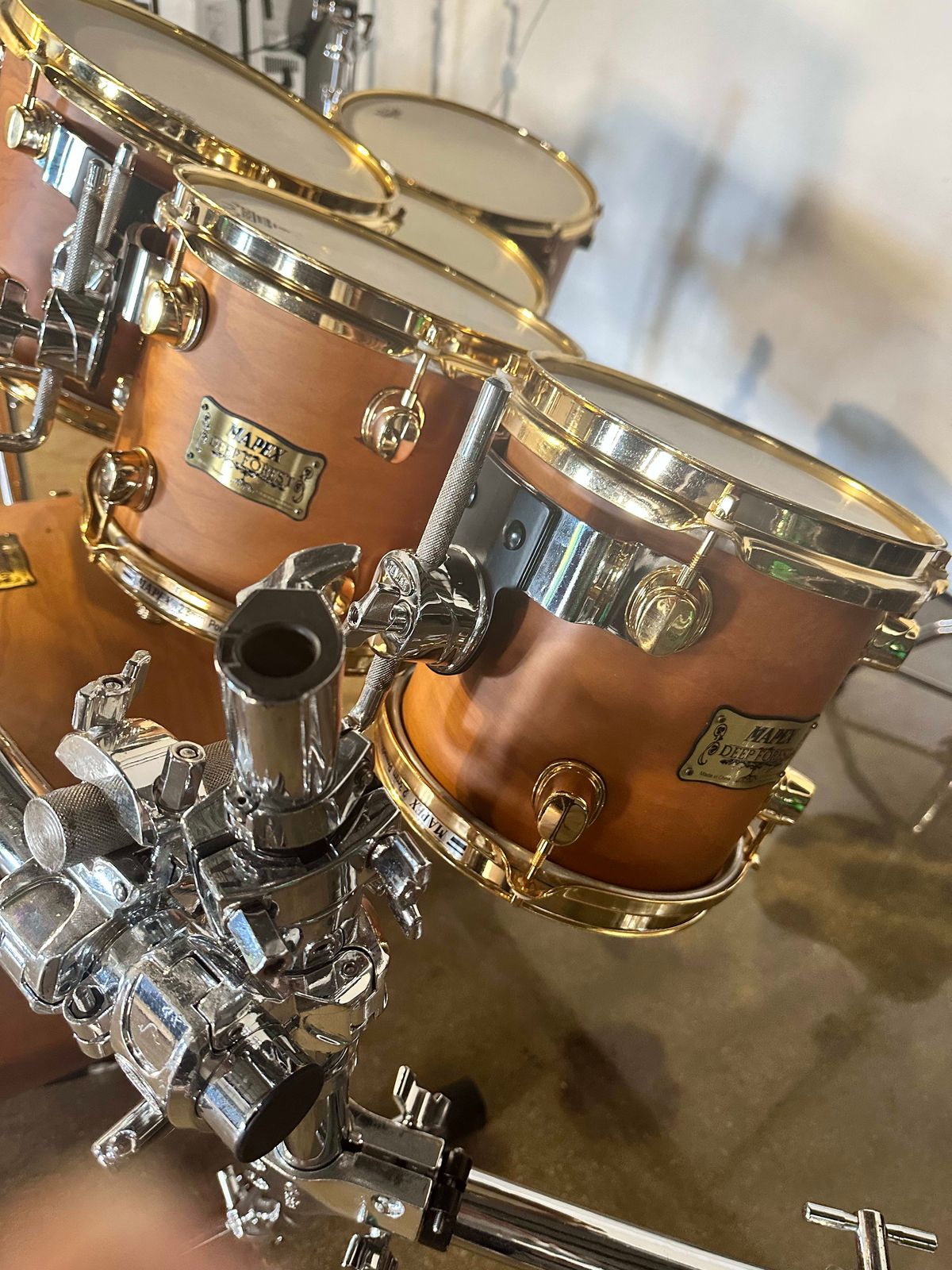

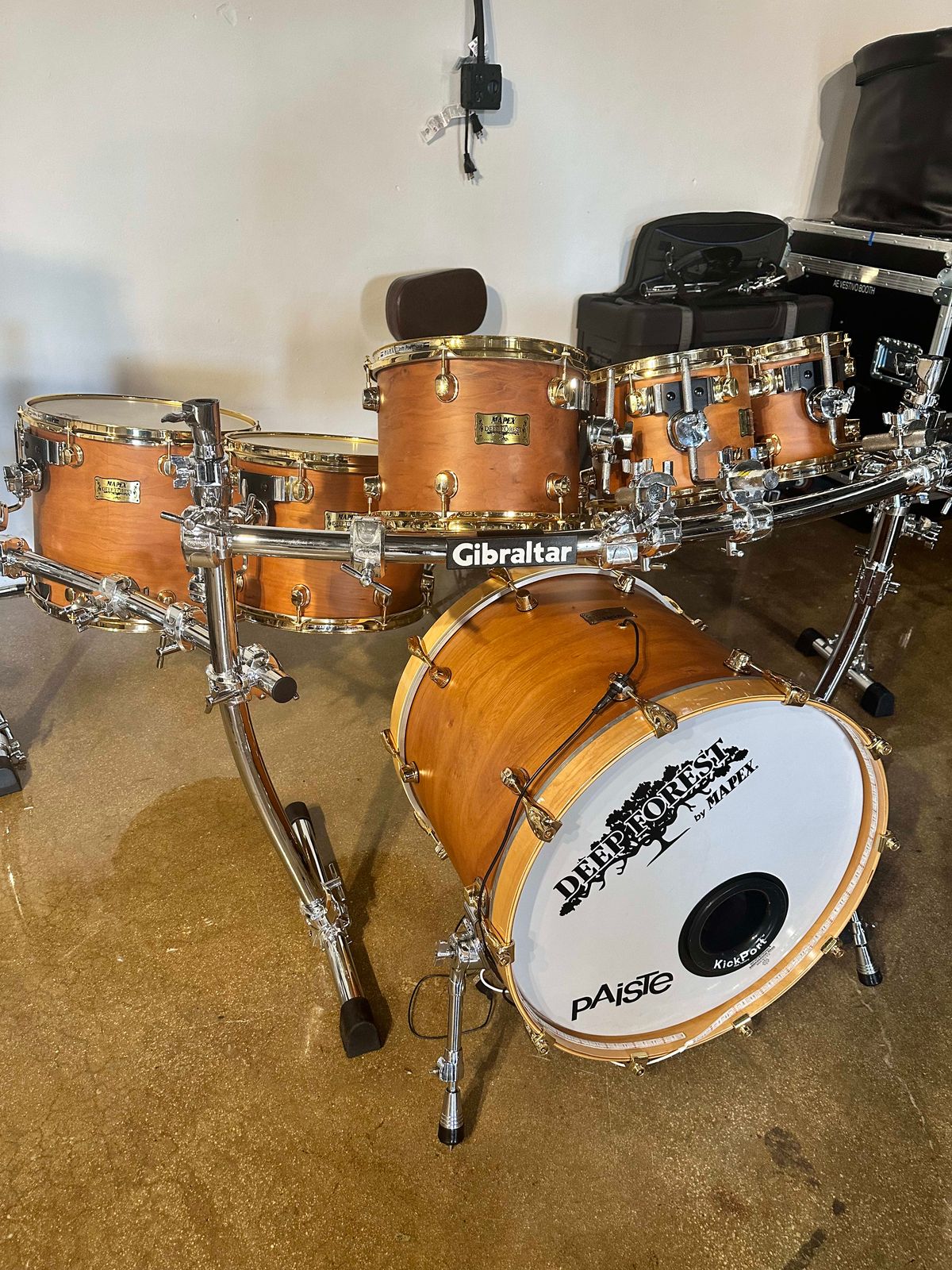

The other photos, including the rare 8" and with aftermarket maple bass drum hoops, are used under Fair Use from Rees Drums on Reverb. Unfortunately the account is disabled, so I have no way to contact them. If these are your photos, please do get in touch.

Specifications

  • Catalogue Ref:
    CW5225WN / CW6225WN
  • Shell Construction:
    Cherry
  • Shell Thickness:
    5.1mm Toms, 7.2mm Bass Drum
  • Shell Finish:
    Wax Natural
  • Bearing Edge:
    45˚
  • Hardware Finish:
    Gold
  • Lug Casings:
    Low-mass oval
  • Hoops:
    2.3mm Powerhoops (Bass/Tom), Die-Cast (Snare)
  • Air Vents:
    1

Rarity (on release)

Uncommon
Only available for about three years, although the snares continued until 2008.

Last Spotted in the Wild

Components

Part No.TypeSize
CWB1814WN
Bass Drum
18"x14"
CWB2014WN
Bass Drum
20"x14"
CWB2016WN
Bass Drum
20"x16"
CWB2216WN
Bass Drum
22"x16"
CWB2218WN
Bass Drum
22"x18"
CWB2218SEWN
Bass Drum
22"x18"
CWB2418WN
Bass Drum
24"x18"
CWT808WN
Rack Tom
8"x8"
CWT1008WN
Rack Tom
10"x8"
CWT1009WN
Rack Tom
10"x9"
CWT1208WN
Rack Tom
12"x8"
CWT1209WN
Rack Tom
12"x9"
CWT1210WN
Rack Tom
12"x10"
CWT1309WN
Rack Tom
13"x9"
CWT1310WN
Rack Tom
13"x10"
CWT1311WN
Rack Tom
13"x11"
CWT1411WN
Rack Tom
14"x11"
CWT1412WN
Rack Tom
14"x12"
CWT1512WN
Rack Tom
15"x12"
CWT1513WN
Rack Tom
15"x13"
CWT1613WN
Rack Tom
16"x13"
CWT1614WN
Rack Tom
16"x14"
CWF1411WN
Floor Tom
14"x11"
CWF1414WN
Floor Tom
14"x14"
CWF1613WN
Floor Tom
16"x13"
CWF1616WN
Floor Tom
16"x16"
CWF1816WN
Floor Tom
18 x 16
CWS0550WN (BPCW0550WN)
Snare
10"x5.5"
CWS4550WN (BPCW4550WN)
Snare
14"x5 5"
CWS4650WN (BPCW4650WN)
Snare
14"x6.5"
